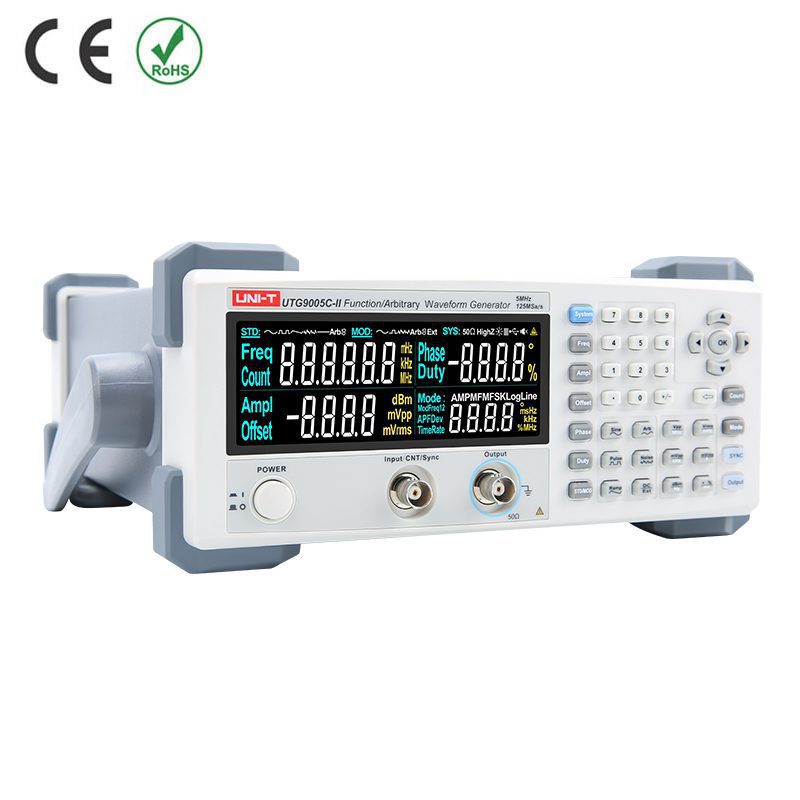

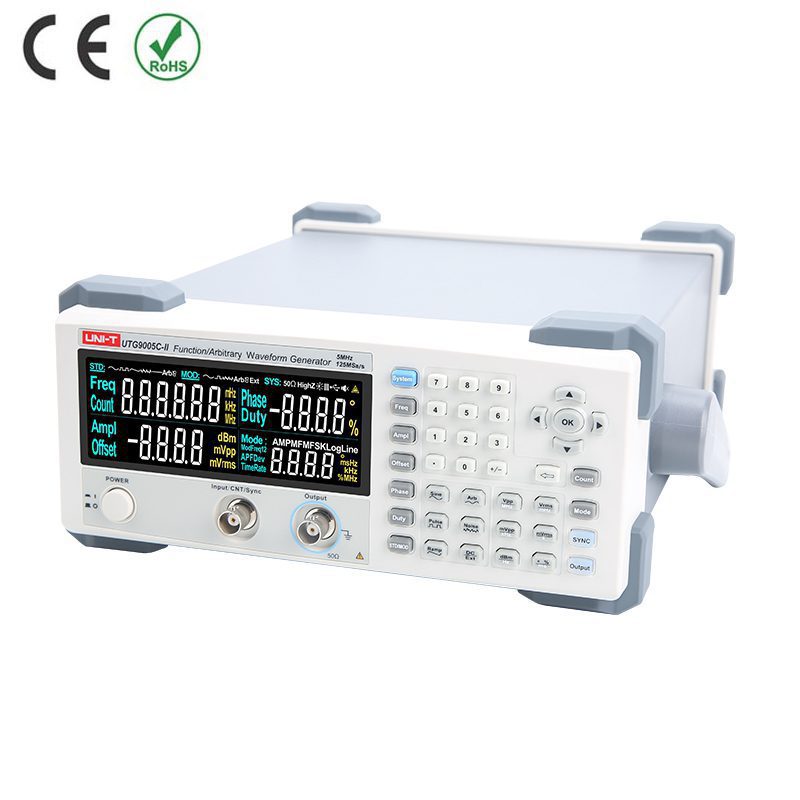

UNI-T Function / Arbitrary Waveform Generator UTG-9005C-II

5,756.7019,189.00 (-70%)

In stock

- Output waveforms: Sine, square, ramp, pulse, noise, DC, arbitrary
- Output frequency range: Sine/square, 5MHz
- High-accuracy, broad-band 6 bit frequency counter, range: 100mHz~100MHz
- 4W power output
- EBTN LCD screen


The UTG9000C-II Series Function/Arbitrary Waveform Generator uses the direct digital synthesis technology, which can generate the accurate, stable, pure and low-distortion waveform output, and the resolution is as low as 1μHz. It is an economical, high-performance and multifunctional function/arbitrary waveform generator. With the convenient operation interface, excellent technical indicators and humanized graphic display, this multi-purpose equipment can meet your learning and testing requirements and improve work efficiency.

Designing, testing, troubleshooting, and repairing of electronic and electroacoustic devices, such as circuit and equipment testing in cellular and wireless systems, broadcasting, television and radio systems; semiconductor component testing etc.

Model UTG9005C-II
Channel 1
Bandwidth 5MHz
Sampling rate 125MS/s
Vertical resolution 14 bits
Waveforms Sine, square, pulse, ramp, noise, DC, arbitrary (20 sets inside )
Sweep modes Logarithmic, linear
Frequency Characteristics
Sine 1μHz~2MHz
Square 1μHz~2MHz
Ramp 1μHz~200kHz
Pulse 1μHz~2MHz
Arbitrary 1μHz~1MHz
Resolution 1μHz
Accuracy Within 90 days ± 50ppm
Within 1 year ± 100ppm
Output Characteristics
Impedance 50Ω/High Z
Amplitude range 1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (high Z)
DC offset range -5Vpp~5Vpp (50Ω) (AC+DC); -10Vpp~10Vpp (high Z) (AC+DC)
Amplitude resolution 1mV
General Characteristics
Power 100~240VAC, 50Hz/60Hz
Display EBTN LCD

What’s in the box:
Standard accessories: USB interface cable, power cord, BNC cable with alligator clips , PC software CD
Standard individual packing: Carton box
