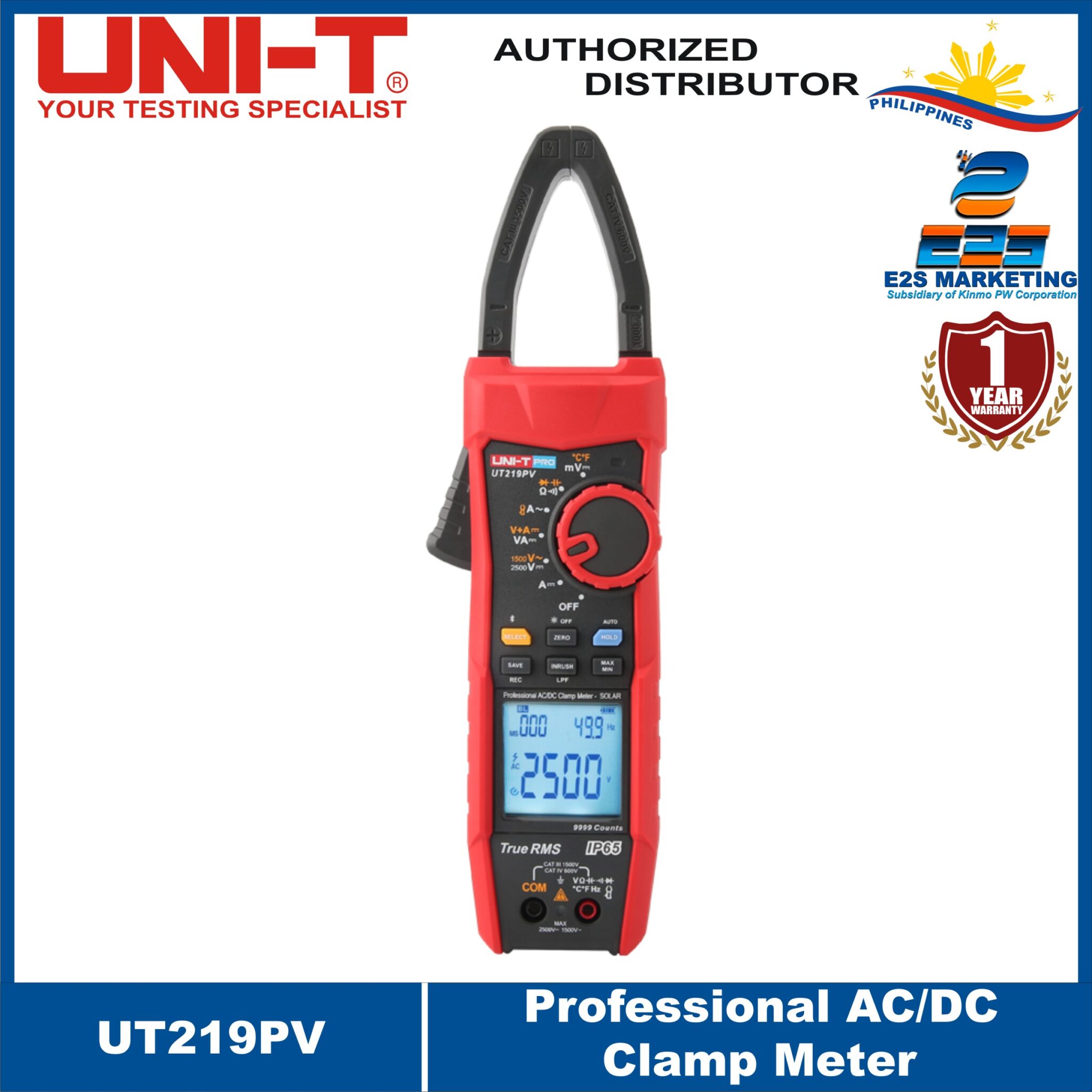

UNI-T UT-219PV Professional AC/DC Clamp Meter UT219PV


₱28,690.00

Share this product

The UT219PV is an advanced AC/DC clamp meter specially designed for high-voltage photovoltaic environments. It offers exceptional accuracy and performance, with a wide range of features. With its automatic range selection and a clear display capable of showing up to 9999 digits, this clamp meter allows for precise measurements of AC/DC voltage, current, low-pass filtered voltage/current, surge current, peak current, DC power (using an external flexible clamp head), resistance, circuit continuity, diodes, capacitance, and temperature. Its versatility extends beyond photovoltaic applications, as it can also be used in other high-voltage settings like energy storage systems, uninterruptible power supplies (UPS), and large motors.

Technical Specifications
Current (ACA) 999.9 A 40Hz~100Hz: ±(2.0%+5)
100Hz~1000Hz: ±(2.5%+5)
Current (DCA) 999.9 A ±(2.0%+5)
Voltage (ACV) 999.9V/1500V 40Hz~1000Hz: ±(1.0%+5)
Voltage (DCV) 999.9V/2500V ±(1.0%+5)
Voltage (DC mV) 999.9 mV ±(1.0%+5)
ACV(with LPF) 999.9V ±(2.0%+9)
ACA(with LPF) 999.9A ±(2.5%+9)
ACA(with LPF): flex clamp sensor 30.00A/300.0A/3000A ±(4.0%+9)(center area)
ACA;with flex clamp sensor 30.00A/300.0A/3000A ±(3.0%+5) (center area)
Power (DC) 999.9 kVA/2500 kVA ±(2.0%+20)
Frequency (A&V)  5.0 Hz to 999.9Hz ±(0.5%+5)
Resistance (Ω) 999.9Ω/9.999KΩ/99.99kΩ ±(1.0%+5)
Cpacitance(F) 100.0μF/1000 μF ±(1.0%+5)
Temperature  -40℃~400℃/-40℉~752℉ ±(1.0%+30); ±(1.0%+60)
Features:
True RMS √
Display count 9999
Display LCD: Dual display (V+A)
Jaw (Max conductor dia.) 35mm
Diode √
Solar panel polarity indication when <-10 DCV, Audible & Visual alarm
High voltage alarm √
Over range indication √
AUTO HOLD √
Inrush current √
PEAK √
Bluetooth app BT 5.0
Auto backlight √
Low battery indication √
Flexiable clamp compatible UT-CS09D (optional)
IP rating IP65
Overvoltage category CAT III 1500V; CAT IV 600V
Certificates CE, cETLus, RoHS
